Software VST Rack je plug-in host, software, který používá VST plug-iny a umožní vám vytvořit si přesně takový efektový rack, který chcete.
Řada

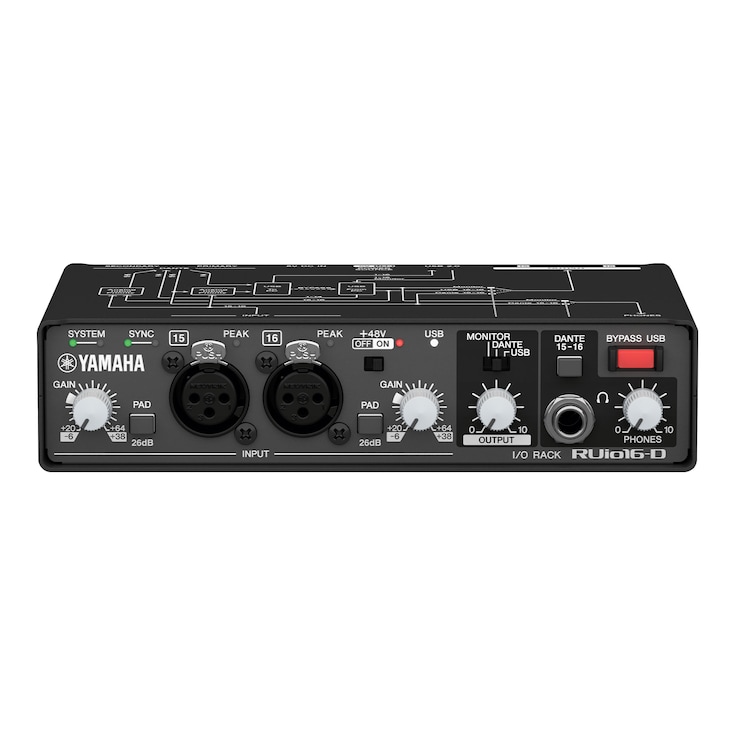

RUio16-DI/O Rack
This I/O rack offers Dante, USB and analog input/output jacks and ports, and is useful in a wide range of situations. Use this product in conjunction with the bundled VST Rack Pro software to create a flexible, stable plug-in environment.
- Analog: 2 inputs, 2 outputs
- Dante: 16 inputs, 16 outputs
- USB: 18 inputs, 16 outputs
- Bypass switch for preventing unexpected issues
- Rack-mountable (using the M4-size screw holes on the underside of the product)
- Dimensions (W×H×D): 180 x 42 x 121 mm (7.1" x 1.7" x 4.8")
- Weight: 1.0 kg (2.2 lbs)
Přibalený software
Možnosti
Zvukoví technici, seznamte se se svým nejnovějším partnerem
RUio16-D je revoluční audio rozhraní, které se vyznačuje svým kompaktním tvarem, a přitom je stále dostatečně odolné, aby odolalo potřebám turné a slouží jako most mezi Dante, analogovými a USB signály. Kombinací tohoto produktu s přibaleným hostitelským softwarem VST Rack Pro pro VST plug-iny vzniká prostředí zásuvných modulů, které uživatelům poskytuje velkou svobodu a usnadňuje integraci oblíbených VST plug-inů do vašeho systému.Tato jednotka je vybavena řadou vstupnách/výstupních konektorů a je užitečná v široké škále situací, jako je výstup počítačem zpracovaného audia do mixu prostřednictvím Dante, akustické měření a mnoho dalších.
Tato jednotka nabízí také vysokou úroveň stability v případě, že se vyskytne problém s vaším počítačem, protože jednotka obchází zpracování zvuku na straně plug-inu, aby se předešlo problémům, které by mohly zastavit zvuk v celém systému. Našim uživatelům přinášíme nový druh řešení zásuvných modulů, které jim umožní volně používat oblíbené VST plug-iny flexibilním a bezpečným způsobem.
An audio interface that serves as a bridge for Dante, USB, and analog signals
The RUio16-D features a variety of input/output jacks to meet the varied needs of engineers.
Use the included VST Rack Pro software to create your own flexible, highly stable plug-in environment. If you are also using a Dante-enabled mixer such as the QL Series, it’s easy to integrate this into your system.
This product also features a high-quality microphone preamp for use in applications such as acoustic measurement.

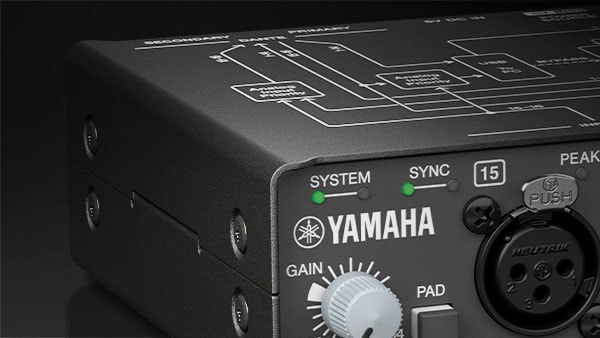

A compact yet rugged interface
The RUio16-D is an audio interface that’s compact enough to carry in one hand, making it easy to bring with you in your carry-on luggage while traveling.
At the same time, this product features a rugged housing that can withstand the demands of touring. Since the bottom of the housing features M4-size screw holes, the RUio16-D can be mounted onto a rack shelf.
Offers a flexible, stable plug-in environment
Enjoy a highly flexible plug-in environment
Engineers can use the RUio16-D in conjunction with the bundled VST Rack Pro software for a stable plug-in environment. With this setup, engineers can integrate their preferred VST plug-ins that they’ve already purchased for live performance and studio use into the system, as well as over 30 different standard plug-ins that are supplied with the VST Rack Pro.
*VST3-compatible plug-ins can be used.

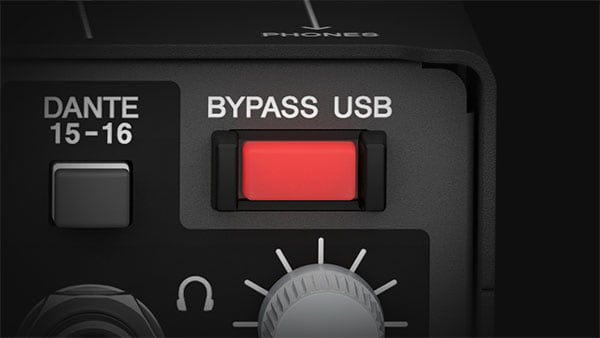

Bypass function for minimizing potential trouble
The front panel of the RUio16-D features a switch for bypassing the audio transmission from the plug-in side. The feature is used if a problem occurs on your computer, preventing any trouble that might stop the sound on the entire system.
The RUio16-D also features Dante redundancy, latches on the XLR connectors, and a locking mechanism on the USB ports used to supply power, all of which have been carefully designed to minimize any potential trouble.

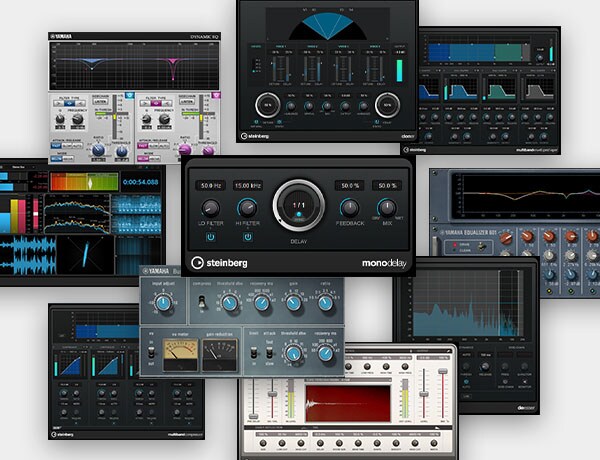

Bundled with a wide variety of plug-ins
The VST Rack Pro includes an array of more than 30 rich-sounding popular plug-ins created by Yamaha and Steinberg.
These include the Buss Comp 369, which has been praised by RIVAGE PM users; REVerence, which offers high-quality sampled reverbs; and the SuperVision, which is useful for managing loudness, together with other plug-ins that can be used in wide variety of other applications.
Adding the RUio16-D and the VST Rack Pro to your touring system will let you use sounds from the plug-ins you’re accustomed to, giving you the sound you want wherever you happen to be.
System examples

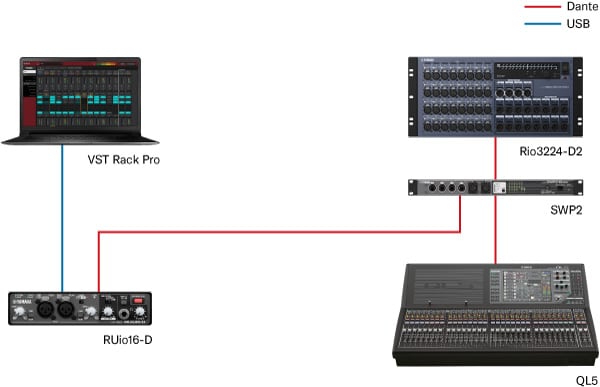

Adding VST plug-ins to a Dante system
It’s easy to add the RUio16-D to sound systems such as the QL Series which use Dante in their infrastructure. You can add up to 16 channels of high-quality plug-ins such as compressors and sampling reverbs without the need for complex wiring or configuration. Just adding simple wiring and a compact interface will provide a significant upgrade to an existing system.

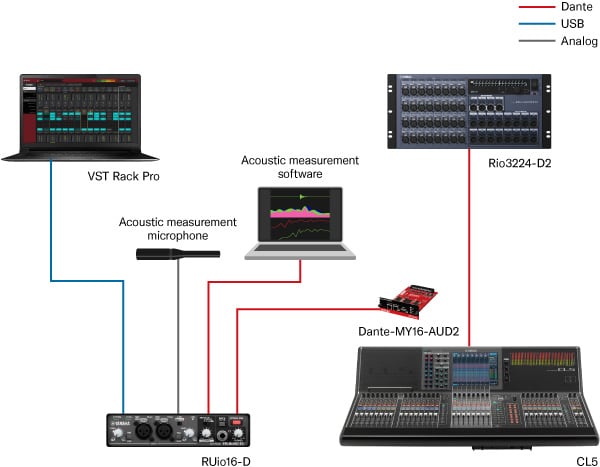

Use as a multipurpose interface to handle plug-ins and acoustic measurement simultaneously
The RUio16-D comes with a wealth of analog, Dante, and USB inputs and outputs that allow you to put it to good use as an interface to integrate plug-ins into your system, as well as for a range of other applications. This system is one such example, using the analog input with a high-grade mic pre as an audio interface for acoustic measurement.
As shown, the RUio16-D is a groundbreaking audio interface that is compact and portable while also being suitable for a wide variety of applications.
*A maximum of 14 Dante input and output channels can be used when using analog inputs and outputs.
*Insert signals cannot be input or output from the Dante port of CL Series consoles. A Dante-MY16-AUD2 card must be used as well.
