Řada

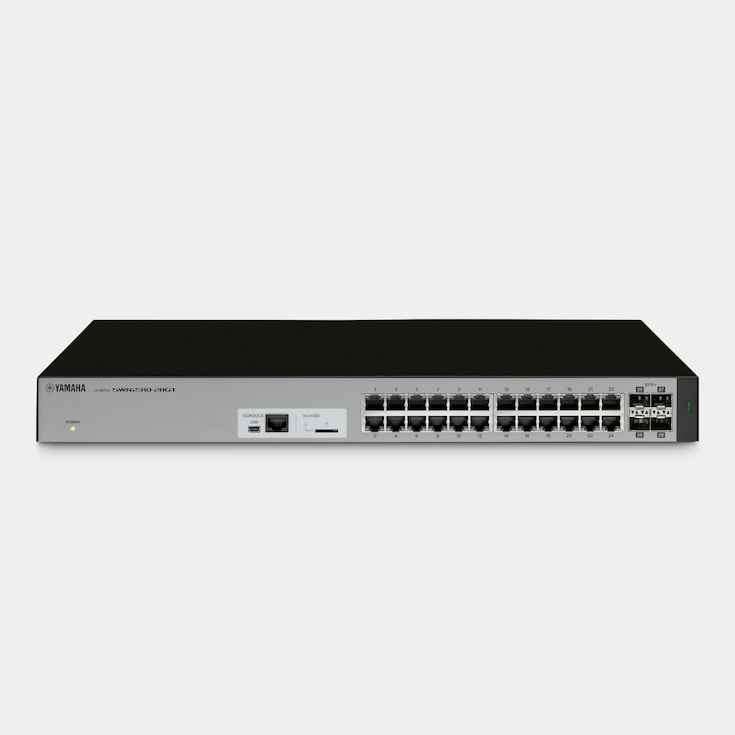

SWR2310-28GTL2 Switch
L2 intelligent RJ45 switch with 28 ports
- Available ports: 24 LAN ports and 4 SFP+ slots
- In-build RADIUS server for advanced security management
- Yamaha LAN Monitor supported

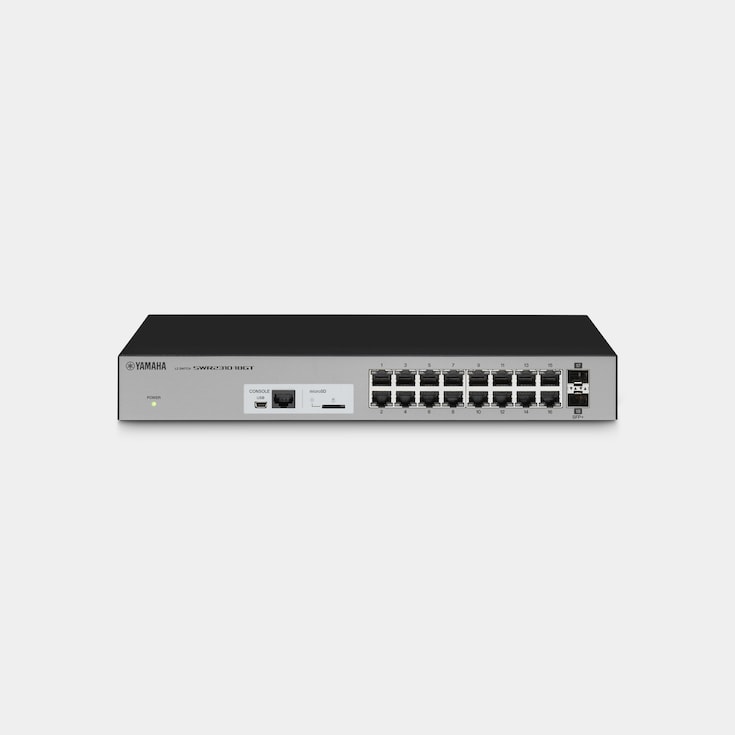

SWR2310-18GTL2 Switch
L2 intelligent RJ45 switch with 18 ports
- Available ports: 16 LAN ports and 2 SFP+ slots
- In-build RADIUS server for advanced security management
- Yamaha LAN Monitor supported

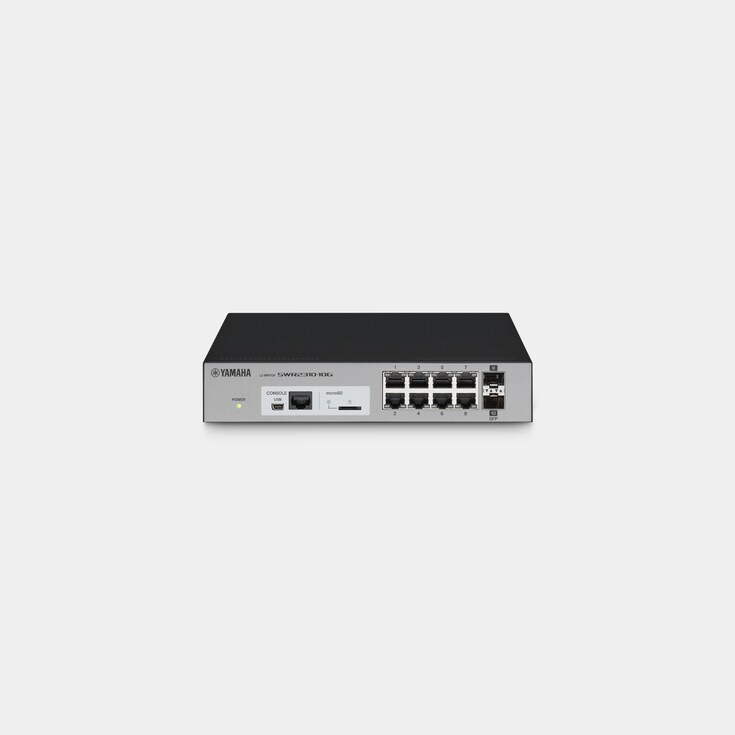

SWR2310-10GL2 Switch
L2 intelligent RJ45 switch with 10 ports
- Available ports: 8 LAN ports and 2 SFP slots
- In-build RADIUS server for advanced security management
- Yamaha LAN Monitor supported
Možnosti
SFP-SWRT-LRSFP+ Module
SFP+ module for 10Gbps audio network
- Maximum Transmission Distance: 10km*
- Compatible Cables: Single-mode optical fiber (9/125μm)
- Regulatory standards: IEEE802.3ae, 10GBASE-LR
- Connector: 2-prong LC connector
- Optical Wavelength: 1,310nm
- Available for SWX3220-16TMs / SWX3220-16MT / SWX2322P-16MT / SWX2320-16MT / SWX2310P-28GT / SWR2310-28GT / SWR2310-18GT
- *Product performance may not meet specifications if the optical fiber or fitting are insufficient.
SFP-SWRT-SRSFP+ Module
SFP+ module for 10Gbps audio network
- Maximum Transmission Distance: OM1 (62.5/125μm): 33m, OM2 (50/125μm): 82m, OM3 (50/125μm): 300m, OM4 (50/125μm): 400m
- Compatible Cables: Multi-mode optical fiber (50/125μm, 62.5/125μm)
- Regulatory standards: IEEE802.3ae, 10GBASE-SR
- Connector: 2-prong LC connector
- Optical Wavelength: 850nm
- Available for SWX3220-16TMs / SWX3220-16MT / SWX2322P-16MT / SWX2320-16MT / SWX2310P-28GT / SWR2310-28GT / SWR2310-18GT
SFP-SWRG-LX
SFP module for SWR series switches
- Maximum Transmission Distance: 10km*
- Compatible Cables: Single-mode optical fiber (9/125μm)
- Regulatory standards: IEEE802.3z, 1000BASE-LX
- Connector: 2-prong LC connector
- Optical Wavelength: 1,310nm
- Available for SWX3220-16TMs / SWX3220-16MT / SWX2322P-16MT / SWX2320-16MT / SWX2310P-28GT / SWR2310-28GT / SWR2310-18GT / SWR2310-10G / SWR2311P-10G
- *Product performance may not meet specifications if the optical fiber or fitting are insufficient.
SFP-SWRG-SX
SFP module for SWR series switches
- Maximum Transmission Distance: 550m (50/125μm) / 300m (62.5/125μm)*
- Compatible Cables: Multi-mode optical fiber (50/125μm, 62.5/125μm)
- Regulatory standards: IEEE802.3z, 1000BASE-SX
- Connector: 2-prong LC connector
- Optical Wavelength: 850nm
- Available for SWX3220-16TMs / SWX3220-16MT / SWX2322P-16MT / SWX2320-16MT / SWX2310P-28GT / SWR2310-28GT / SWR2310-18GT / SWR2310-10G / SWR2311P-10G
- *Product performance may not meet specifications if the optical fiber or fitting are insufficient.
DAC-SWRT-3M
Direct Attached Cable for 10Gbps audio network
- Twinax cable 30AWG, Passive
- Cable length: 3m
- Available for SWX3220-16TMs / SWX3220-16MT / SWX2322P-16MT / SWX2320-16MT / SWX2310P-28GT / SWR2310-28GT / SWR2310-18GT
DAC-SWRT-1M
Direct Attached Cable for 10Gbps audio network
- Twinax cable 30AWG, Passive
- Cable length: 1m
- Available for SWX3220-16TMs / SWX3220-16MT / SWX2322P-16MT / SWX2320-16MT / SWX2310P-28GT / SWR2310-28GT / SWR2310-18GT
RK-SWR
Rack mount accessory for SWR series switces
- Dimensions: W 482.6 mm x D 300 mm x H 44mm
- Weight: 1.7kg
- Available for SWR2311P-10G, SWR2310-10G, SWX2210P-10G, SWR2100P-10G
WK-SWR
Wall mount accessory for SWR series switches
- Dimensions: W 249 mm x D 3.3 mm x H 270mm
- Weight: 0.37kg
- Available for SWR2311P-10G / SWR2310-10G / SWR2310-18GT / SWX2210P-10G / SWX2100P-10G
- The switches can be mounted on a wall or a ceiling with a height of 2m or less*
- *Do NOT install with the LAN ports facing upward or downward.
Možnosti
Chytré a bezpečné ovládání Dante systému pro velké instalace
Produktová řada switchů Yamaha SWR, nabízející vysoce výkonné L2 switche pro pevné instalace, byla rozšířena tak, aby poskytla širší škálu modelů pro širší škálu aplikací. Kromě funkcí VLAN nabízí nové modely SWR2310-28GT a SWR2310-18GT vysoký počet portů a funkce, jako jsou 10G uplink porty pro dálkový přenos vícekanálových 96kHz dat, což z nich činí ideální volbu pro bezpečný a stabilní páteřní provoz ve velkých a rozlehlých systémech. Stejně jako u ostatních SWR/SWP přepínačů, také zde poosyktuje software Yamaha LAN Monitor jasné vizuální monitorování stavu systému, které usnadňuje nastavení Dante systému.

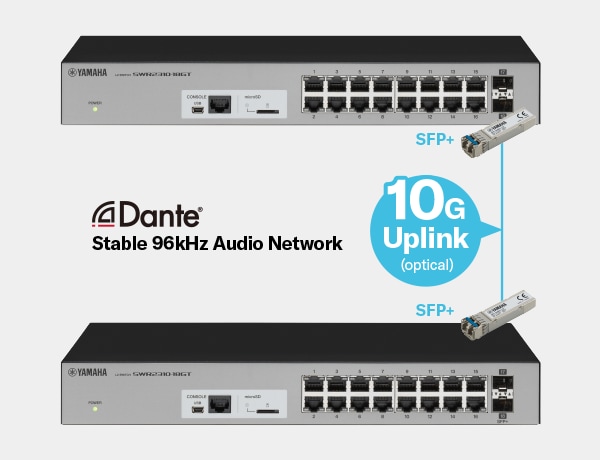

10Gbps Supported Multi-port Models for Solid Backbone Performance
With high port counts and 10G uplink ports that can be used to transfer multichannel 96 kHz data over extended distances, the SWR2310-28GT and SWR2310-18GT switches have been designed to support safe, stable network operation in system backbone applications. Optional SFP-SWRT-SR and SFP-SWRT-LR small form-factor pluggable modules allow reliable long-distance communication of multiple channels of 96 kHz audio data, up to a maximum of 10 kilometers with the SFP-SWRT-LR, significantly enhancing performance, dependability, and flexibility for commercial installations, theaters, stadiums, and other large-scale installations.
One-click Dante Optimization

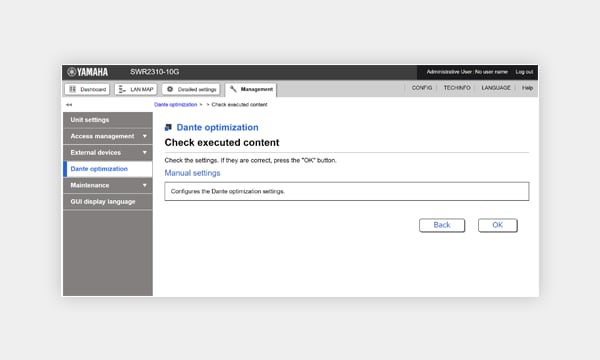

IGMP and QoS settings for SWR series switches can be automatically optimized for Dante network operation by simply clicking the “Dante optimization” button in the web-based GUI. These network settings are not critical in simple systems, but proper configuration is essential to ensure maximum stability in larger Dante networks.

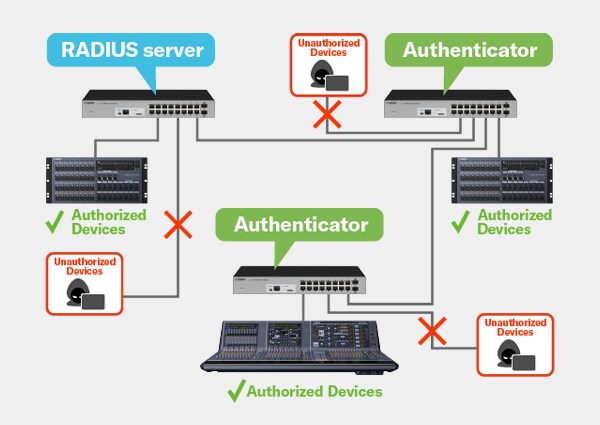

Intelligent Security Management
Augmenting the VLAN functionality included in the SWR2310 series is built-in RADIUS server function. By setting up one switch as a RADIUS server and linking other switches to it, unauthorized network access can be effectively blocked for enhanced security, even in complex large-scale installations. Device authentication can be set up quickly and easily via a web-based GUI.
Network Visibility and Smart Management (Yamaha LAN Monitor)
Effective Dante network management hinges on a range of parameters such as network traffic, switch status, and individual Dante device information. The dedicated Yamaha LAN Monitor computer application provides a comprehensive single-screen view of all necessary parameters when used with SWP/SWR/SWX series switches. We refer to this type of graphical overview as “network visibility.” You can even take a snapshot of the normal network status and set an alarm to warn you if any of the parameters changes, so that problems can be identified and resolved quickly and easily. The Dante Controller application can also be launched from the Yamaha LAN Monitor with a single click, providing a total Dante network solution on a single computer.
Options for Flexible System Design and Installation
A number of options are available for the SWR series, including rack-mount and wall-mount brackets that facilitate mounting in a variety of locations, and SFP modules that allow long-distance communication for flexible overall system setup and installation. The chart below lists the options that are available for each SWR switch model.
| Accessories → Switches ↓ |
SFP-SWRT-LR (SFP+ module) |
SFP-SWRT-SR (SFP+ module) |
SFP-SWRG-LX (SFP module) |
SFP-SWRG-SX (SFP module) |
DAC-SWRT-3M (Direct Attached Cable) |
DAC-SWRT-1M (Direct Attached Cable) |
RK-SWR (Rack-mount) |
WK-SWR (Wall-mount) |
|---|---|---|---|---|---|---|---|---|
| SWX3220-16TMs | ||||||||
| SWX3220-16MT | ||||||||
| SWX2322P-16MT | ||||||||
| SWX2320-16MT | ||||||||
SWX2310P-28GT |
||||||||
| SWR2310-28GT | ||||||||
| SWR2310-18GT | ||||||||
| SWR2310-10G | ||||||||
| SWR2311P-10G | ||||||||
| SWX2210P-10G | ||||||||
| SWR2100P-10G | ||||||||
| SWR2100P-5G |
* Rack-mount brackets are included in SWR2310-18GT / SWR2310-28GT
-

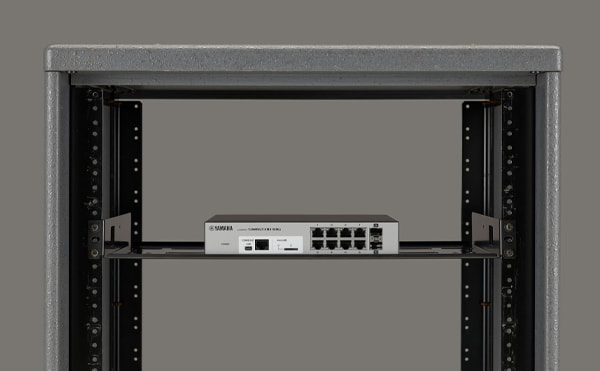

Rack-mount installation (SWR2310-10G + RK-SWR)
-

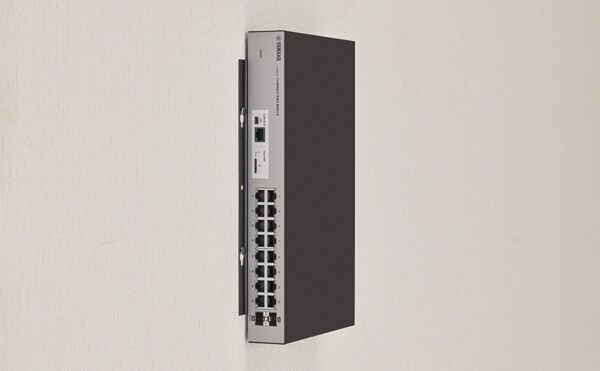

Wall-mount installation (SWR2310-18GT + WK-SWR)
* With WK-SWR the unit is mountable on the wall or ceiling with a height of 2m or less
* Do not install with the LAN ports facing upward or downward
Systémy
System Example
- This sample system for a conference room includes a remote conferencing system, built around a digital signal processor, which allows conferences to be shared with remote locations.
- By networking from input to output, administrative operation performance improves, such as management from setting change to troubleshooting with one PC.
- This system has been designed to provide optimum sound for meetings and conferences, making use of the excellent projection provided by the VXL1-16P to ensure ample volume and clarity right to the back of the room.
- By setting up one switch as a RADIUS server and linking other switches, unauthorized network access can be effectively blocked for enhanced security.
