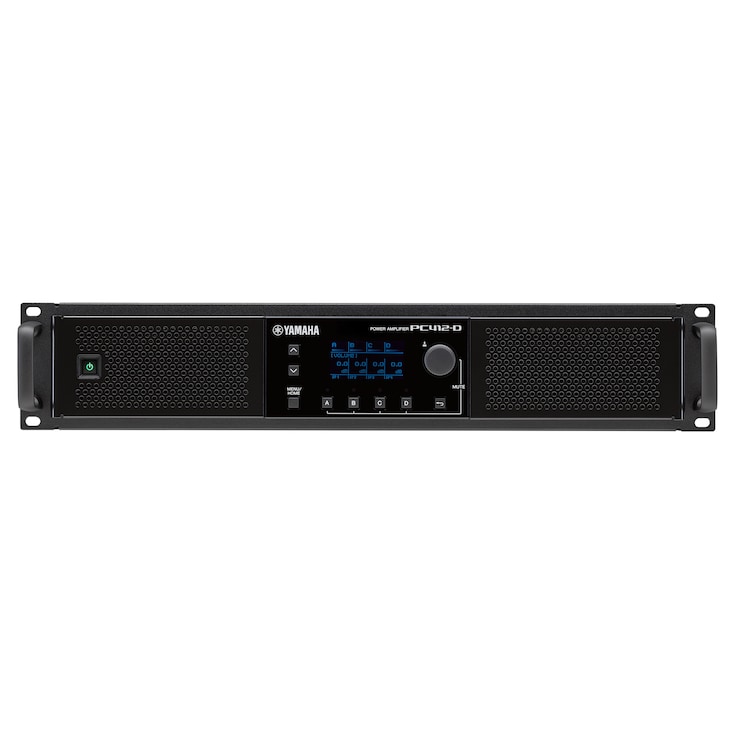

PC412-DPower Amplifier
The PC-D / DI series are so much more than just high power amplifier. The impressive 20 x 8 input matrix capability of PC-D / DI Series amplifiers combines with Dante I/O to provide dramatic improvements to the versatility of any system. Featuring powerful onboard speaker processors as standard. PC-D / DI series are also compatible with ProVisionaire Touch and ProVisionaire Control, and we can provide customized remote controls if required. 1200W x 4 at 8Ω.
- 4 x 1200W at 8Ω
- 20 x 8 powerful input matrix function
- Sampling frequency is up to 96k
- 16ch Dante input/output
- Speaker processor such as 16 band PEQ, crossover, filters, delay and limiter
- Yamaha speaker presets
- Remote control via ProVisionaire Touch/Control

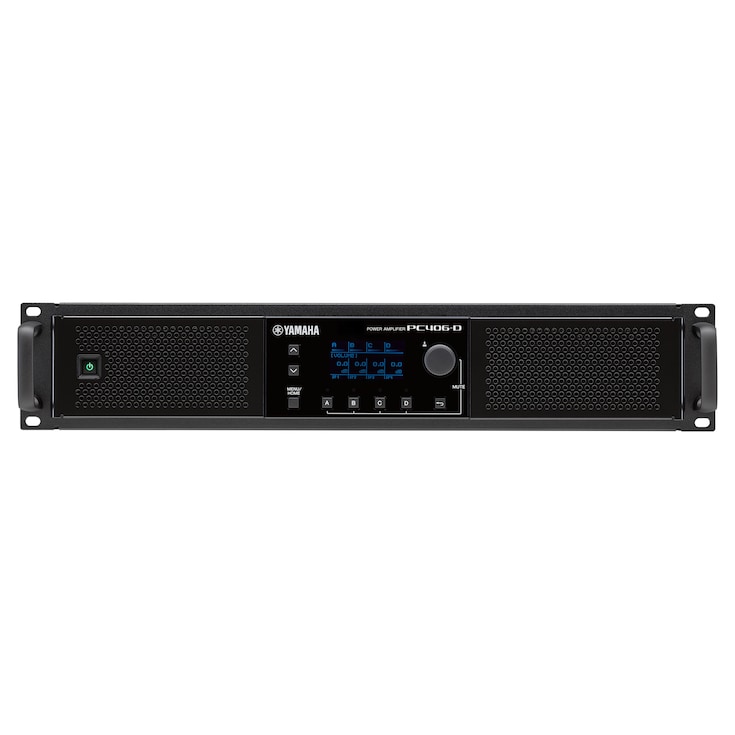

PC406-DPower Amplifier
The PC-D / DI series are so much more than just high power amplifier. The impressive 20 x 8 input matrix capability of PC-D / DI Series amplifiers combines with Dante I/O to provide dramatic improvements to the versatility of any system. Featuring powerful onboard speaker processors as standard. PC-D / DI series are also compatible with ProVisionaire Touch and ProVisionaire Control, and we can provide customized remote controls if required. 600W x 4 at 8Ω.
- 4 x 600W at 8Ω
- 20 x 8 powerful input matrix function
- Sampling frequency is up to 96k
- 16ch Dante input/output
- Speaker processor such as 16 band PEQ, crossover, filters, delay and limiter
- Yamaha speaker presets
- Remote control via ProVisionaire Touch/Control

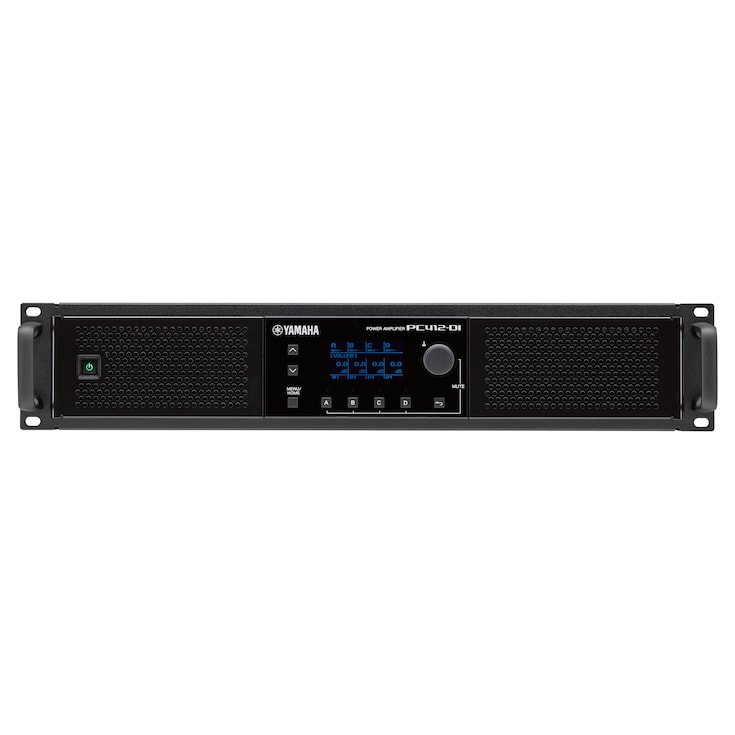

PC412-DIPower Amplifier
The PC-D / DI series are so much more than just high power amplifier. The impressive 20 x 8 input matrix capability of PC-D / DI Series amplifiers combines with Dante I/O to provide dramatic improvements to the versatility of any system. Featuring powerful onboard speaker processors as standard. PC-D / DI series are also compatible with ProVisionaire Touch and ProVisionaire Control, and we can provide customized remote controls if required. 1200W x 4 at 8Ω. Switchable for low and high impedance speaker systems.
- 4 x 1200W at 8Ω, 4 x 1200W at 100V/70V
- 20 x 8 powerful input matrix function
- Sampling frequency is up to 96k
- 16ch Dante input/output
- Speaker processor such as 16 band PEQ, crossover, filters, delay and limiter
- Yamaha speaker presets
- Remote control via ProVisionaire Touch/Control

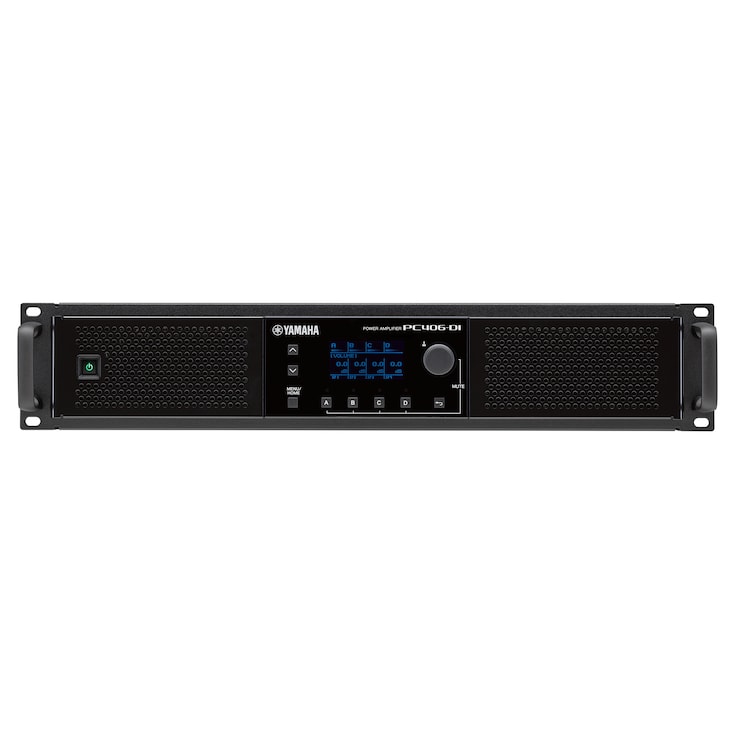

PC406-DIPower Amplifier
The PC-D / DI series are so much more than just high power amplifier. The impressive 20 x 8 input matrix capability of PC-D / DI Series amplifiers combines with Dante I/O to provide dramatic improvements to the versatility of any system. Featuring powerful onboard speaker processors as standard. PC-D / DI series are also compatible with ProVisionaire Touch and ProVisionaire Control, and we can provide customized remote controls if required. 600W x 4 at 8Ω. Switchable for low and high impedance speaker systems.
- 4 x 600W at 8Ω, 4 x 600W at 100V/70V
- 20 x 8 powerful input matrix function
- Sampling frequency is up to 96k
- 16ch Dante input/output
- Speaker processor such as 16 band PEQ, crossover, filters, delay and limiter
- Yamaha speaker presets
- Remote control via ProVisionaire Touch/Control
Možnosti
Výkon. Univerzálnost. Ovládání.
Modely PC-D / DI série jsou mnohem víc než jen zesilovače — jsou to první výkonové zesilovače vůbec, které jsou schopné tvořit jádro kompletně propojené audio sítě pro vícezónové instalace a živé zvukové aplikace. Neustále se měnící požadavky a rychlý pokrok v technologiích zesilovačů a obecně zesílení zvuku vyžaduje jak univerzálnost, tak i výkon. A tato série nabízí obou těchto aspektů dostatek. Nyní můžete využít sílu a flexibilitu nejkomplexnějšího maticového processingu, který můžete nalézt ve výkonovém zesilovači. To vše posíleno o jednoduchost a snadnou Dante konektivitu pro vytváření plně integrovaného a efektivního zvukového řešení. A co víc, plná kompatibilita se sérií ProVisionaire vám poskytuje plnou kontrolu nad celým síťovým řetězcem, od mixpultů až po zesilovače, procesory a reproduktory. Stručně řečeno, PC-D / DI série vám dává to, o čem každý zvukař vždy snil — úplnou kontrolu.
Powerful Matrix Functionality and Dante I/O provides Superior Flexibility
The impressive 20 x 8 input matrix capability of PC-D / DI Series amplifiers combines with Dante I/O to provide dramatic improvements to the versatility of any system. The PC-D / DI Series can be used as a supplementary matrix to expand the overall system matrix, and even in systems without mixers or additional DSP, allows direct sound input from other analog devices or Dante-equipped gear to offer more flexible routing capabilities. The onboard Dante inputs and outputs also allow redundant connections for handling 16 input/16 output audio at up to 96 kHz with low latency, while combining the PC-D / DI Series with remote software such as ProVisionaire Control provides even more flexibility and intuitive control.
-

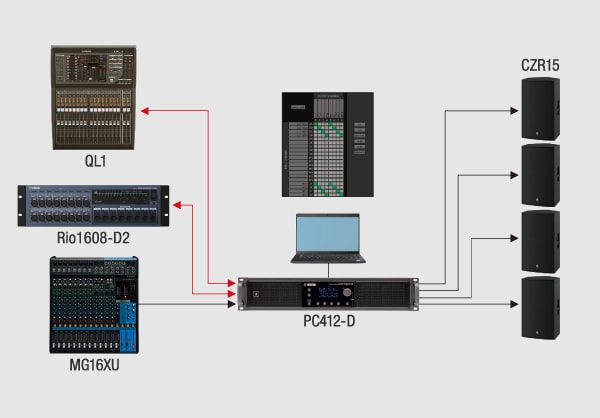

Using matrix applications for flexible routing
Sound from an analog mixer is input into a PC412-D, in addition to sound output from a digital mixer. Input matrix functionality can be used to output the combined sound to speakers or other Dante devices.
-

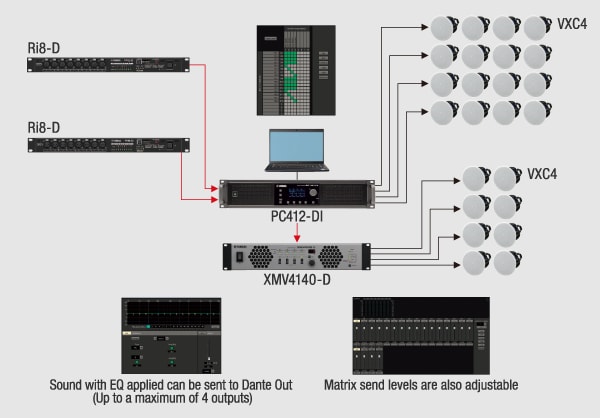

Constructing a mixer-less system
Sound is fed from Dante inputs on two devices to a PC412-DI. Input matrix functionality is used to direct the combined sound to speakers. Additionally, Dante Out can be used to send sound with adjusted EQ to other amlifiers.
Power you can count on

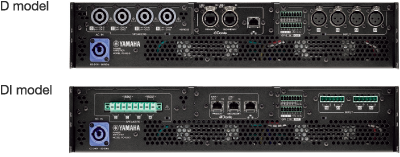

The PC-D / DI Series feature highly efficient Class-D amplifiers that deliver supreme sound quality with outstanding precision and stability even when driving high-load. There are 600 W and 1200 W versions of both the “D” touring models and the “DI” installation models, each with connectivity best suited to their respective applications. The DI models handle high-impedance connections with ease, allowing the construction of systems consisting of numerous speakers. All models come with detachable handles and replaceable filters.
Packed with processing power

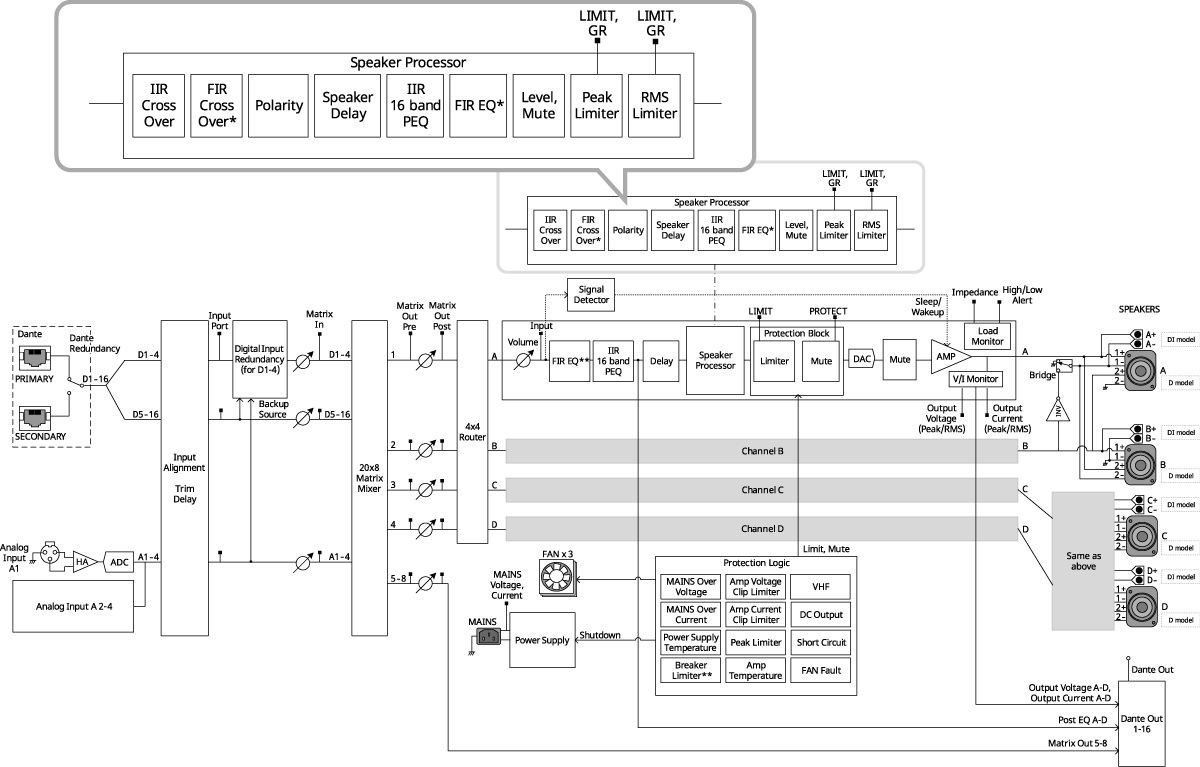

Featuring powerful onboard speaker processors as standard, PC-D / DI Series amplifiers offer processing such as 16-band PEQ, delay, peak limiting, and RMS limiting, as well as FIR filter** that achieve linear phase, allowing users to tune speakers perfectly with precision and ease. Dante outputs can be used to transmit further parameter adjustments of Room EQ to other amps, allowing EQ for multiple amp channels to be adjusted centrally. The speaker preset library is well-stocked with optimized presets for the Yamaha CZR Series and others, making it effortless to achieve the perfect speaker tuning for your system.
* Can be configured only by recalling Speaker Preset data
** Available in future firmware release
-

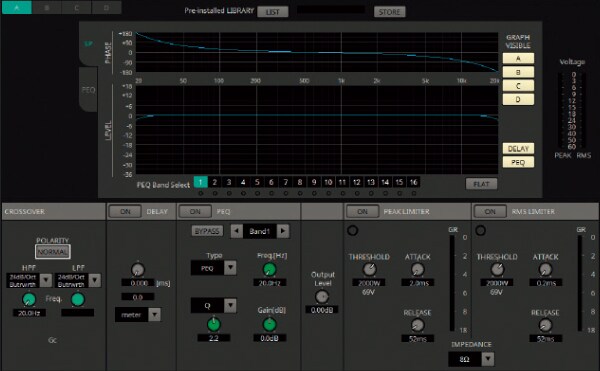

ProVisionaire Amp Editor
-

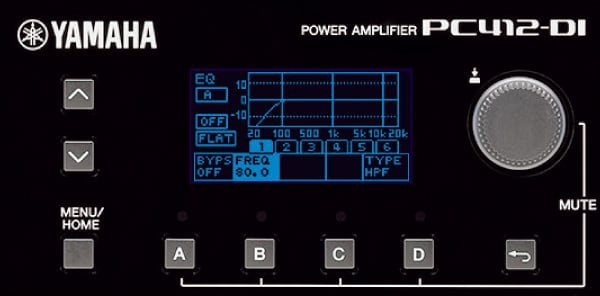

Front panel
The ProVisionaire Series… from start to finish
The PC-D Series allows detailed designs to be created using two types of ProVisionaire.

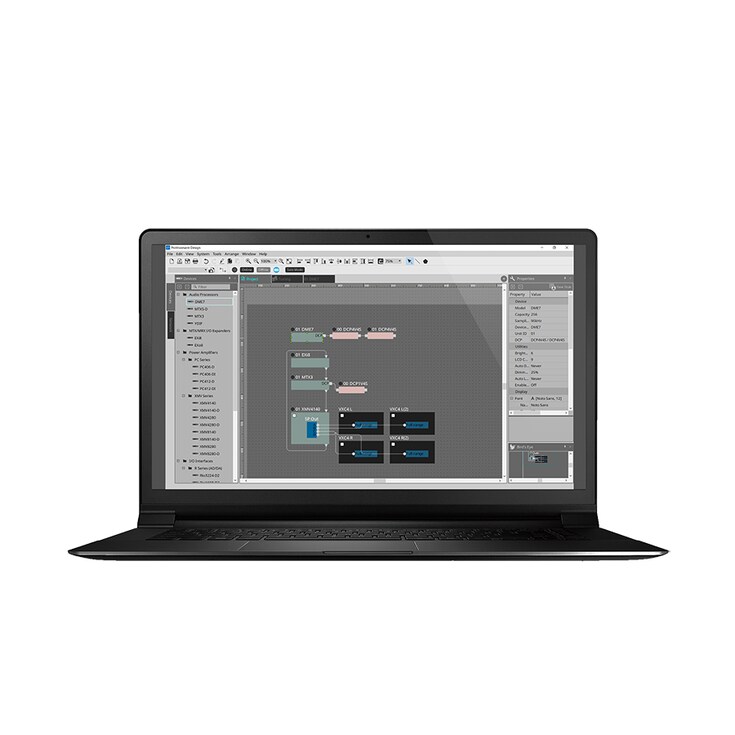

ProVisionaire Design is a comprehensive Windows software application that allows intuitive sound design when using compatible Yamaha products. It is perfect for designing systems that utilize Yamaha products including the PC-D Series, DME/MRX processors and Rio/Tio interfaces, and ADECIA solutions. ProVisionaire Design can also be combined with the ProVisionaire Control computer application, allowing integrated control of all aspects of a project, from system design and configuration to everyday operation and management.
