Inteligentní L2 síťový přepínač (switch) optimalizovaný pro Dante a PoE+ pro větší/střední systémy ADECIA.
Řada
SWX3220-16TMsL3 přepínač (switch)
Standardní L3 switch s 16 porty
- 12 multi-gigabitových portů (100M/1G/2.5G/5G/10G)
- Vestavěný server RADIUS pro pokročilou správu zabezpečení
- Podporuje PTPv2 TC (Transparent Clock)
- Podporuje Yamaha LAN Monitor
SWX3220-16MTL3 Switch
L3 Standard switch with 16 ports
- 4 SFP+ ports and 12 multi-gigabit ports (100M/1G/2.5G/5G/10G)
- Built-in RADIUS server for advanced security management
- Supports PTPv2 TC (Transparent Clock)
- Supports Yamaha LAN Monitor
SWX2322P-16MTL2 přepínač (switch)
Inteligentní L2 PoE++ switch s 16 porty
- 12 multi-gigabitových portů (100M/1G/2.5G/5G/10G) s PoE++ a 4 SFP+ porty
- Vestavěný server RADIUS pro pokročilou správu zabezpečení
- Kompatibilní s IEEE 802.3bt s PoE++ s výkonem až 90 W na port (celkem: 250 W)
- Podporuje PTPv2 TC (Transparent Clock)
SWX2320-16MTL2 Switch
L2 Intelligent switch with 16 ports
- 12 multi-gigabit ports (100M/1G/2.5G/5G/10G) and 4 SFP+ ports
- Built-in RADIUS server for advanced security management
- Supports PTPv2 TC (Transparent Clock)
- Supports Yamaha LAN Monitor
Možnosti
SFP-SWRT-LRSFP+ Module
SFP+ module for 10Gbps audio network
- Maximum Transmission Distance: 10km*
- Compatible Cables: Single-mode optical fiber (9/125μm)
- Regulatory standards: IEEE802.3ae, 10GBASE-LR
- Connector: 2-prong LC connector
- Optical Wavelength: 1,310nm
- Available for SWX3220-16TMs / SWX3220-16MT / SWX2322P-16MT / SWX2320-16MT / SWX2310P-28GT / SWR2310-28GT / SWR2310-18GT
- *Product performance may not meet specifications if the optical fiber or fitting are insufficient.
SFP-SWRT-SRSFP+ Module
SFP+ module for 10Gbps audio network
- Maximum Transmission Distance: OM1 (62.5/125μm): 33m, OM2 (50/125μm): 82m, OM3 (50/125μm): 300m, OM4 (50/125μm): 400m
- Compatible Cables: Multi-mode optical fiber (50/125μm, 62.5/125μm)
- Regulatory standards: IEEE802.3ae, 10GBASE-SR
- Connector: 2-prong LC connector
- Optical Wavelength: 850nm
- Available for SWX3220-16TMs / SWX3220-16MT / SWX2322P-16MT / SWX2320-16MT / SWX2310P-28GT / SWR2310-28GT / SWR2310-18GT
SFP-SWRG-LX
SFP module for SWR series switches
- Maximum Transmission Distance: 10km*
- Compatible Cables: Single-mode optical fiber (9/125μm)
- Regulatory standards: IEEE802.3z, 1000BASE-LX
- Connector: 2-prong LC connector
- Optical Wavelength: 1,310nm
- Available for SWX3220-16TMs / SWX3220-16MT / SWX2322P-16MT / SWX2320-16MT / SWX2310P-28GT / SWR2310-28GT / SWR2310-18GT / SWR2310-10G / SWR2311P-10G
- *Product performance may not meet specifications if the optical fiber or fitting are insufficient.
SFP-SWRG-SX
SFP module for SWR series switches
- Maximum Transmission Distance: 550m (50/125μm) / 300m (62.5/125μm)*
- Compatible Cables: Multi-mode optical fiber (50/125μm, 62.5/125μm)
- Regulatory standards: IEEE802.3z, 1000BASE-SX
- Connector: 2-prong LC connector
- Optical Wavelength: 850nm
- Available for SWX3220-16TMs / SWX3220-16MT / SWX2322P-16MT / SWX2320-16MT / SWX2310P-28GT / SWR2310-28GT / SWR2310-18GT / SWR2310-10G / SWR2311P-10G
- *Product performance may not meet specifications if the optical fiber or fitting are insufficient.
DAC-SWRT-3M
Direct Attached Cable for 10Gbps audio network
- Twinax cable 30AWG, Passive
- Cable length: 3m
- Available for SWX3220-16TMs / SWX3220-16MT / SWX2322P-16MT / SWX2320-16MT / SWX2310P-28GT / SWR2310-28GT / SWR2310-18GT
DAC-SWRT-1M
Direct Attached Cable for 10Gbps audio network
- Twinax cable 30AWG, Passive
- Cable length: 1m
- Available for SWX3220-16TMs / SWX3220-16MT / SWX2322P-16MT / SWX2320-16MT / SWX2310P-28GT / SWR2310-28GT / SWR2310-18GT
Možnosti
Síťové produkty a služby Yamaha
Ve společnosti Yamaha jsme nejen průkopníky propojení mezi hudebními nástroji a digitálními technologiemi, ale také propojení, která obohacují životy lidí prostřednictvím síťové infrastruktury.
Na základě zkušeností společnosti Yamaha se zpracováním signálu, které jsme získali jako inovátoři v oblasti elektronických nástrojů, jsme tyto dovednosti rychle převedli na síťové technologie. Již více než 20 let hrajeme zásadní roli ve vývoji internetu, který se stal životně důležitým prvkem pro moderní společnost.
I nadále se snažíme poskytovat ještě lepší služby a podporu, aby vaše připojení bylo plynulejší a pohodlnější než kdykoli předtím. Pokračujeme v inovacích a vylepšování způsobu, jakým se připojujete.
10-Gigabit/Multi-Gigabit switches for flexible deployment in high-capacity networks
Enhancing backbone networks has become crucial for businesses, concert halls, and other installations due to the rising demand for high-quality video and audio with low latency. By introducing switches that support 10-Gigabit/Multi-Gigabit Ethernet, our new lineup creates an ideal environment for backbone networks requiring high speeds, capacities, and capabilities. These new L3 intelligent switches support systems handling increased media traffic across multiple segments, while our L2 switches are perfect for transmitting single-segment audio and video media. Like our other existing products, this expanded lineup is also supported by Yamaha LAN Monitor and includes a range of features optimized for Dante systems.
One-click Optimization
Selecting the SDVoE profile in the Web GUI will automatically update the switch’s IGMP snooping settings to optimize them for SDVoE.
With one click, ProAV Settings in the Web GUI effortlessly assigns settings to ports for major ProAV profiles like Dante, NDI, and SDVoE, making It easier than ever to use both SDVoE and Dante on the same switch.
Additionally, the ProAV Settings screen in the Web GUI allows you to quickly check multicast settings and operations, for faster and easier troubleshooting in ProAV networks.
Create high-speed, high-capacity networks with 10-gigabit and multi-gigabit speeds
The LAN ports of the SWX2320-16MT and SWX3220-16MT support five speeds (100M/1G/2.5G/5G/10Gbps) and optimize network speed as appropriate to the devices connected. As demand for speed and capacity grows because of rising numbers of wireless devices, greater audiovisual communication traffic, and increasing access to large files, faster LAN switches allow smooth handling of loads that would congest 1 Gbps networks. Networks that already use Cat5e or Cat6 cables can be accelerated to up to 5 Gbps by replacing their GbE switches with these new models. 10 Gbps networks can be created by using Cat6A cables with these models.
-

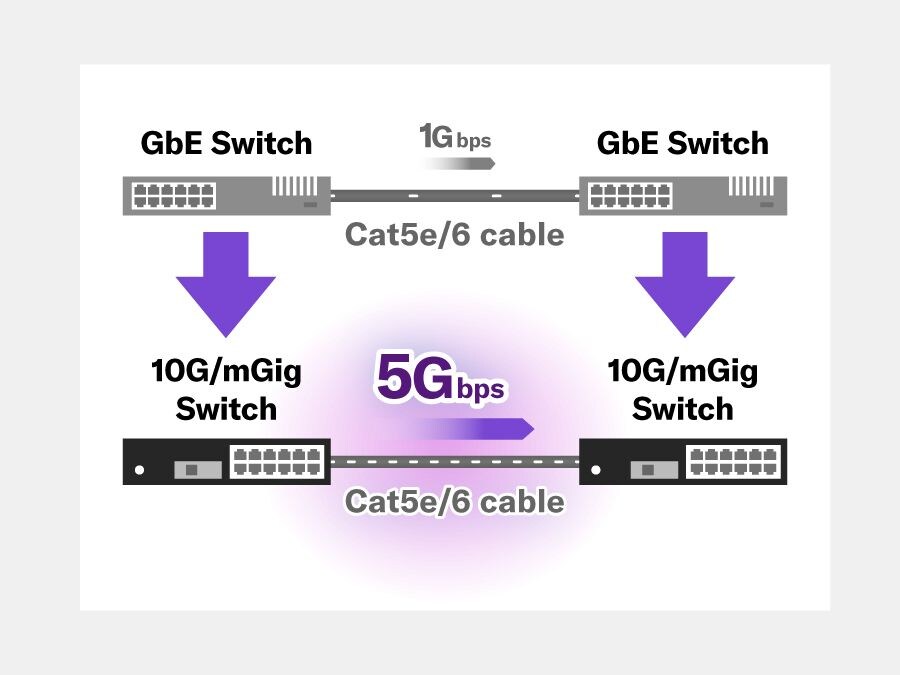

Upgrade existing networks
-

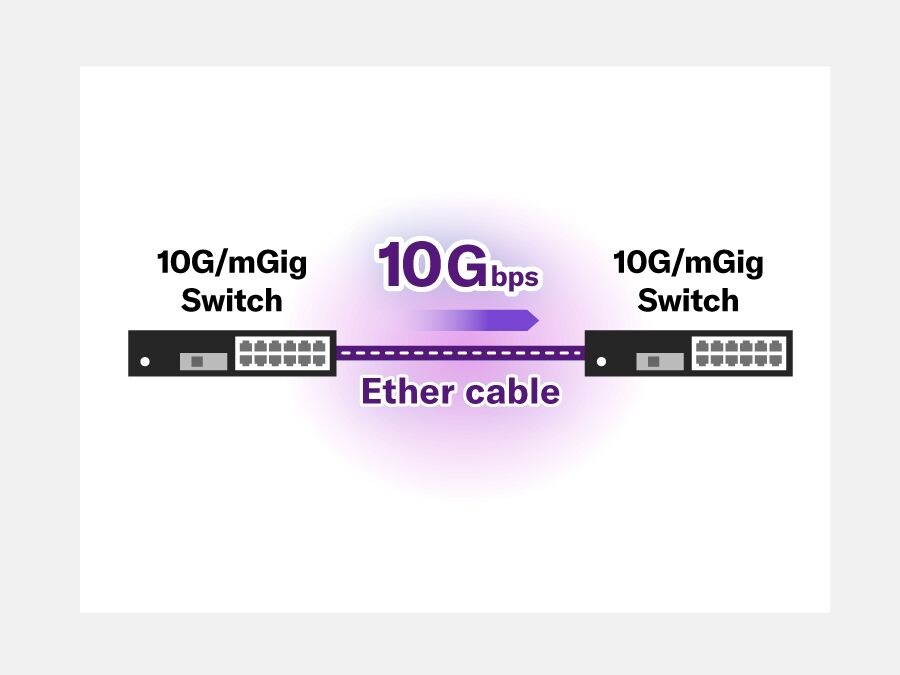

Construct high-speed networks
Network Visibility and Smart Management (Yamaha LAN Monitor)
Effective Dante network management hinges on a range of parameters such as network traffic, switch status, and individual Dante device information. The dedicated Yamaha LAN Monitor computer application provides a comprehensive single-screen view of all necessary parameters when used with SWP/SWR/SWX series switches. We refer to this type of graphical overview as “network visibility.” You can even take a snapshot of the normal network status and set an alarm to warn you if any of the parameters changes, so that problems can be identified and resolved quickly and easily. The Dante Controller application can also be launched from the Yamaha LAN Monitor with a single click, providing a total Dante network solution on a single computer.
Intelligent Security Management
Augmenting the VLAN functionality included in the SWX2320-16MT/SWX3220-16MT is built-in RADIUS server function. By setting up one switch as a RADIUS server and linking other switches to it, unauthorized network access can be effectively blocked for enhanced security, even in complex large-scale installations. Device authentication can be set up quickly and easily via a web-based GUI.
Support for PTPv2 TC time synchronization of 1 μsec or less
To provide the high-precision time synchronization necessary for synchronized audio and video playback and other applications, IEEE 1588 PTPv2 TC (Transparent Clock) is now supported with 1 Gbps/10 Gbps networks. This feature adds delay time data to PTP messages as they pass through the switches, enabling synchronization precision between devices of 1 μsec or less when real-time performance is required.
Options for Flexible System Design and Installation
A number of options are available for the SWR/SWX series, including rack-mount and wall-mount brackets that facilitate mounting in a variety of locations, and SFP modules that allow long-distance communication for flexible overall system setup and installation. The chart below lists the options that are available for each SWR and SWX switch model.
| Accessories → Switches ↓ |
SFP-SWRT-LR (SFP+ module) |
SFP-SWRT-SR (SFP+ module) |
SFP-SWRG-LX (SFP module) |
SFP-SWRG-SX (SFP module) |
DAC-SWRT-3M (Direct Attached Cable) |
DAC-SWRT-1M (Direct Attached Cable) |
RK-SWR (Rack-mount) |
WK-SWR (Wall-mount) |
|---|---|---|---|---|---|---|---|---|
| SWX3220-16TMs | ||||||||
| SWX3220-16MT | ||||||||
| SWX2322P-16MT | ||||||||
| SWX2320-16MT | ||||||||
SWX2310P-28GT |
||||||||
| SWR2310-28GT | ||||||||
| SWR2310-18GT | ||||||||
| SWR2310-10G | ||||||||
| SWR2311P-10G | ||||||||
| SWX2210P-10G | ||||||||
| SWR2100P-10G | ||||||||
| SWR2100P-5G |
*Brackets are included.
-
Rack-mount installation (SWX3220-16MT + Rack mount bracket)
*If you plan to rack-mount the unit along with a device that tends to generate heat, such as an amplifier, be sure to leave a gap of 1U or more from such devices.
-
Wall-mount installation (SWX2320-16MT + Wall mount bracket)
*With the wall mount bracket the unit is mountable on the wall or ceiling with a height of 2m or less
*Do not install with the LAN ports facing upward
Technical terms
What is DANTE
Dante replaces heavy, expensive analog or multicore cabling with LAN cables such as CAT5e and CAT6.
Because Dante uses logical routing instead of physical point-to-point connections, the network can be configured using available ports with just a few clicks.
Systems with Dante can also be easily expanded.
Additionally, Dante supports redundancy configuration, ensuring reliability even in emergency situations.
What is SDVoE
SDVoE (Software Defined Video over Ethernet) is an international standard for the professional audio/video (ProAV) market that can transmit 4K high-definition video and audio over 10 Gigabit communications.
By combining SDVoE encoders/decoders and controllers with a 10 Gigabit switch, video walls and multi-view systems can be configured.
This provides flexible support for implementations of digital signage across a variety of facilities, including airports, schools, e-sports facilities, and corporations.
What is NDI Certified
These new Yamaha SWR and SWX series switches are one of the first hardware products globally to become NDI Certified in the network switch category.
This certification guarantees full compatibility with products from the NDI Certified ecosystem, even without requiring native NDI integration. Yamaha switches provide an effortless experience and high-quality connection within any NDI network and workflow.
NDI (Network Device Interface) is a groundbreaking video connectivity standard that enables seamless transmission of high-quality video, audio, and metadata over standard IP networks. By leveraging NDI technology, devices such as cameras, switchers, and media servers on the same network can automatically discover and connect with one another, eliminating the need for complex configurations or dedicated cabling.
This connectivity standard empowers producers to access and utilize a virtually unlimited number of video sources within their network, significantly enhancing the flexibility and scalability of live production workflows. Whether for live events, broadcasts, or post-production, NDI transforms traditional video production by seamlessly integrating all sources on the network.
NDI® is a registered trademark of Vizrt NDI AB.
