Vnitřní pódia / chrámy [malé]
Kompaktní a přenosný PA systém, který disponuje dostatečným výkonem pro ozvučení živé kapely na menších venkovních pódiích pro publikum do 100 osob v závislosti na velikosti místa konání.
- The system consists of a mixing console, 2x powered speakers, a powered subwoofer for front of house sound, and 2x powered speakers for monitoring.
- High-quality reverb and delay add natural depth and vibrancy to the sound with remarkably natural feel. [Mixing console MG16XU]
- Speaker system features D-CONTOUR intelligent dynamic control feature for consistent clarity at any output level. [Powered loudspeaker DHR15]
- Floor monitor speaker is optimized with 57° wedge angle. [Powered loudspeaker DHR12M]
| Category | Model Name | Qty |
|---|---|---|
| Mixing Console | MG16XU | 1 |
| Power Amplifier | - | - |
| Main Speaker | DHR15 (Powered Speaker) | 2 |
| Subwoofer | - | - |
| Monitor Speaker | DHR12M (Powered Speaker) | 3 |
System
Tipy
Vestavěné SPX digitální efekty
Model MG16XU je vybaven oceňovaným digitálním multiefektem Yamaha SPX a nabízí komplexní sadu 24 editovatelných digitálních efektů, které se skvěle hodí pro obohacení vašeho mixu pomocí přidání hloubky nebo vdechnutí nové barvy zvuku a atmosféry do hraní živé kapely. Kromě toho vysoce výkonný reverb a delay dodává zvuku prostorovost s bezkonkurenční realističností a přirozeností.
Coaxial Compression Driver
DHR12M is the first Yamaha speaker to feature a coaxial compression driver for improved clarity and smoother frequency response for floor monitoring.

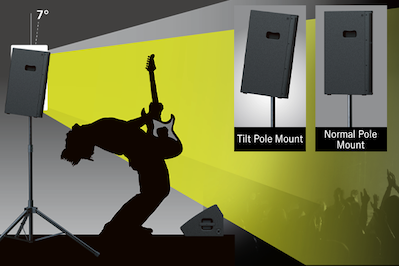

Dual-Angle Pole Mount Socket
Depending on the venue, sometimes your mix can fall prey to low ceilings or other room attributes that can impede a clear, even mix and detract from the audiences' listening experience significantly. The DHR15's pole mount socket offers two positions - 0° or -7° - to direct the acoustic energy away from reflective surfaces and on to your audience where it belongs.
Produktové informace
MG16XU
16-Channel Mixing Console
- Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo)
- 4 GROUP Buses + 1 Stereo Bus / 4 AUX (incl. FX)
- 1-Knob compressors
- High-grade effects: SPX with 24 programs
- 24-bit/192kHz 2in/2out USB Audio functions
- Rack Mount Kit included
- MG REC/PLAY, Cubase AI and Cubasis LE available
DHR15
15” 2-way powered loudspeaker
- 1000 W Class-D amplifiers
- Maximum 131 dB SPL (peak)
- D-CONTOUR multi band dynamic processor
- Easy-to-use onboard 2-channel mixer
- Compact and lightweight (24.0 kg / 52.9 lbs)
- Durable plywood enclosure with polyurea coating
- Dual-Angle 35 mm pole mount socket
- Integrated M10 rigging points for suspended applications
DHR12M
12” 2-way powered loudspeaker
- 1000 W Class-D amplifiers
- Coaxial compression driver
- Maximum 129 dB SPL (peak)
- D-CONTOUR multi band dynamic processor
- Easy-to-use onboard 2-channel mixer
- Compact and lightweight (16.5 kg / 36.4 lbs)
- Low profile and durable plywood enclosure with polyurea coating
- 35 mm pole mount socket
