VXS série "F model"

Najít obchod

Řada

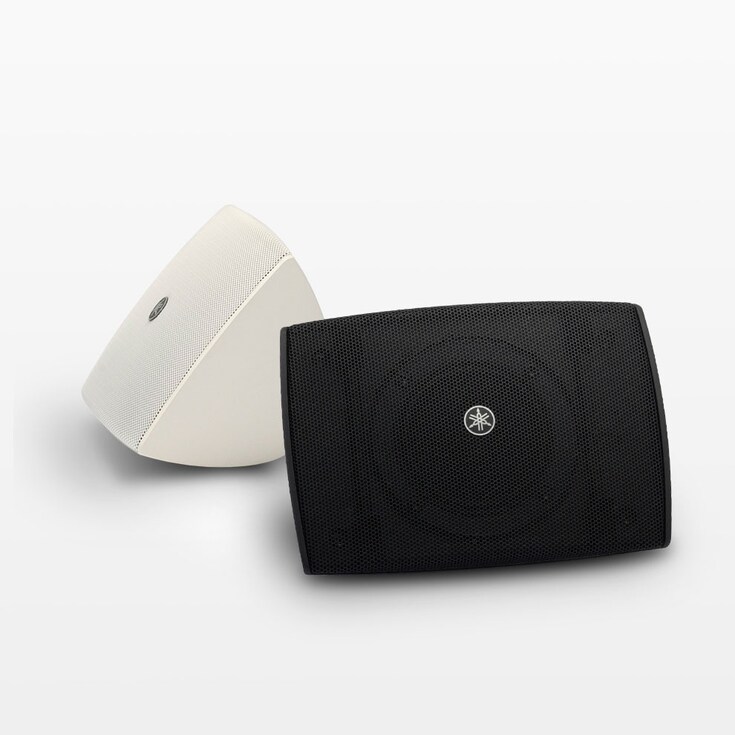

VXS3F / VXS3FWReproduktory pro povrchovou montáž

Colors / Finishes

  • Black
  • White

Kompaktní reproduktory pro povrchovou montáž elegantně zapadnou do jakéhokoli interiéru (modely s nízkou impedancí)

  • 3,5“ širokopásmové reproduktorové jednotky
  • Nízkoimpedanční model pro malé instalace
  • Atraktivní, diskrétní design doplňuje elegantní interiér
  • Speciální držák pro vylepšení designu je součástí dodávky
  • Akustický design pro sofistikovanou, přirozenou reprodukci
  • Jednotlivé reproduktory pokrývají široký úhel záběru
  • Lakovatelné kryty a mřížky
  • K dispozici jsou černé a bílé modely
  • 1,1 kg (2,4 lbs)*, š 184 mm x v 130 mm x h 134 mm (š 7,3" x v 5,1" x h 5,3")* *včetně držáku

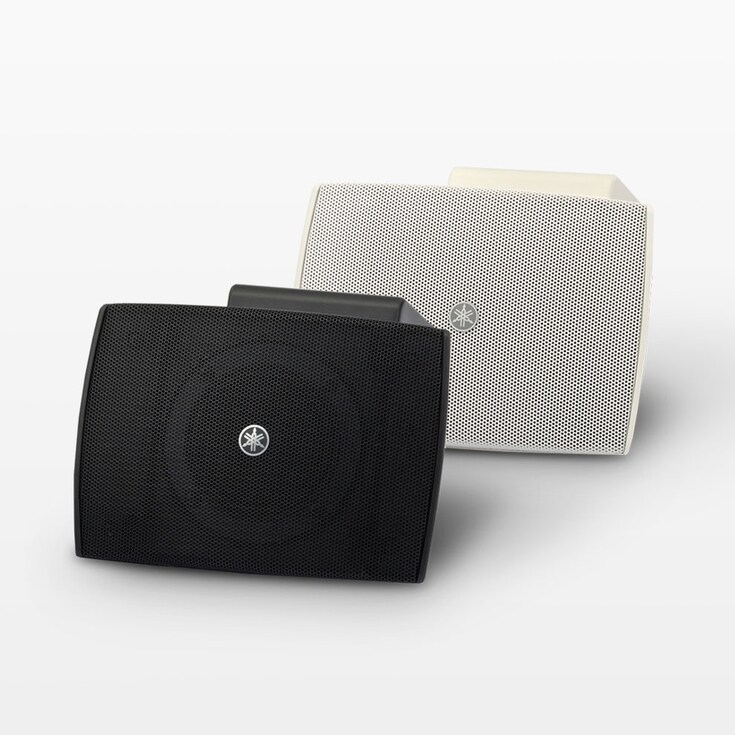

VXS3FT / VXS3FTWS55

Colors / Finishes

  • Black
  • White

Compact surface-mount speakers elegantly blend into any interior décor (High-impedance models)

  • 3.5” full-range speaker units
  • High-impedance model for large installations
  • Attractive, discreet design complements elegant décor
  • Supplied bracket with dedicated transformer complements the overall design
  • Acoustic design for sophisticated, natural reproduction
  • Individual speakers cover a wide angle
  • Paintable enclosures and grilles
  • Black and white models available
  • 1.7kg (3.7 lbs)*, W 184mm x H 178mm x D 139 mm (W 7.3" x H 7.0" x D 5.5")* *Including bracket

Možnosti

Styl a podstata

Reproduktory pro povrchovou montáž mohou hrát zásadní roli jak ve vizuální, tak i zvukové atmosféře, kterou se rozhodnete vytvořit ve vašem komerčním prostoru. Díky elegantním křivkám a atraktivnímu, minimalistickému designu reproduktorů Yamaha VXS3F a VXS3FT je lze snadno přizpůsobit jakémukoli komerčnímu prostředí, které hledá jedinečný jemný doplněk celkové estetiky. A stejně působivý je i jejich výkon. Tyto reproduktory s jednotkou měniče optimálně vyladěnou pro přehrávání hudby ve vysokém rozlišení a flexibilní a intuitivní design, které tyto reproduktory nabízejí všem účastníkům instalačního procesu — od instalačních firem a majitelů, až po koncové uživatele — v podobě jednoduchého a efektivního řešení pro snadnou integraci vysoce kvalitního zvuku do působivé rozmanitosti restauračních, maloobchodních a profesionálních prostředí. Spojením tohoto subtilního, atraktivního designu se striktním důrazem na zvukovou kvalitu si společnost Yamaha vysloužila celosvětové uznání. A tím reproduktory pro povrchovou montáž VXS3F a VXS3FT dokazují, že styl a podstata se ne vždy musí vylučovat.

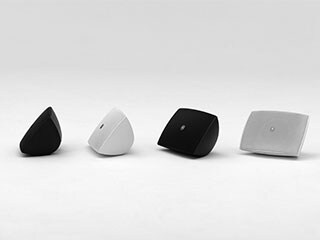

Attractive, Discreet Design for Elegant Spaces

The polished presence of the VXS3F or VXS3FT can add stylish appeal to any environment. These speakers present a slim installed profile that appears to float in space, blending easily with just about any décor. The size of the speaker enclosure has been reduced as much as possible, while smoothly flowing lines and surfaces add visual charisma.

Sophisticated Natural Sound

The VXS3F and VXS3FT deliver refined, naturally pleasing sound. In order to provide richly expressive music playback even at low volume, Yamaha has applied years of accumulated skill and experience in tuning the system for the most natural reproduction of musical instruments as well as human voices. Careful selection of the highest quality drivers and components also elevates overall quality.

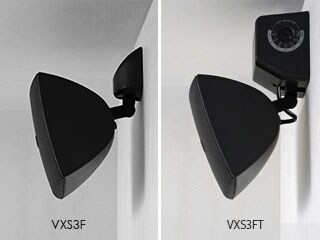

Choose the Model that Meets Your Needs

The VXS3F and VXS3FT are designed to deliver the same outstanding performance in different installed settings*. The VXS3F is ideal for smaller installations such as retail stores where just a few speakers will be used to cover the service area. Wide dispersion allows effective coverage with a minimum number of speakers. The VXS3FT is preferred when a large number of speakers will be required to cover an expansive or complex area. Connection taps allow volume (output watts) to be adjusted after installation for added flexibility. * The VXS3F and VXS3FT feature the same enclosure, but are supplied with different mounting brackets.

Designer's Comments

The compact VXS3F and VXS3FT feature an elegantly sculpted exterior design that visually expresses the outstanding quality and clarity of their sound. Gracefully flowing curves from rear to front represent the directness of the sound, while the triangular cross section makes optimum use of the space between walls and ceiling for seamless, efficient installation. With a design that creates the illusion of floating gently in space rather than appearing as a mechanical “unit” attached to a surface as an afterthought, these speakers are ideal for owners and proprietors who want to provide the highest sound quality without disrupting their interior décor.- Takenori OMACHI, Yamaha Design Laboratory -

  • Yamaha Design "Synapses"otevřít v novém okně

    Yamaha Design "Synapses" expresses our design passion, through the conceptual keywords organically connecting whole Yamaha product design.

Systémy

System Example 1: Café

The VXS3F (Low-impedance model) is ideal for smaller installations such as retail stores where just a few speakers will be used to cover the service area. Wide dispersion allows effective coverage with a minimum number of speakers. The MA2030a is a stylish mixer amplifier that can be easily used without any prior audio experience. All you need to get started is the MA2030a, VXS3F speakers, and a music source of your choosing. You can add a microphone for announcements and small events if necessary, easily broadening the scope of your business.

System Example 2: Restaurant

The VXS3FT (High-impedance model) is preferred when a large number of speakers will be required to cover an expansive or complex area. Connection taps allow volume (output power) to be adjusted after installation for added flexibility. With VXS series F models and a mixer amplifier MA2030a, it is possible to create a streamlined, high-performance system that allows microphone use while BGM is being played, for example. Add a power amplifier such as the PA2030a for zoning capability.

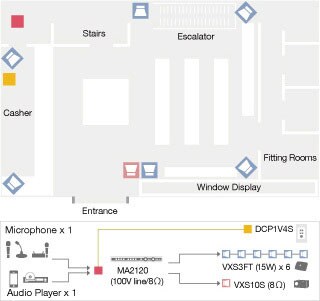

System Example 3: Retail store

The combination of VXS3F/VXS3FT speakers and VXS10S/VXS10ST subwoofers is recommended to enhance the power and excitement of rhythmic music. A single unit of MA2120, which has independently controllable two output channels, would be a good choice for broadcasting announcements or advertisements while supplying background music. It allows users to create a comfortable, agreeable environment by carefully adjusting the output volume of each channel. The DCP1V4S control panel installed in the area allow remote control of background music volume and other operations.

Související odkazy

Odpovídající software

Související informace

Odpovídající produkty

Případové studie

Zobrazit vše

Související řešení

Zobrazit vše

Novinky

* Specifikace se mohou změnit bez předchozího upozornění. Zobrazené barvy a povrchové úpravy se mohou lišit od barev a povrchových úprav skutečných produktů.
